2nd Generation Air Sanitizer

Cleaner Air, Healthier Crops

Why Choose Our Air and Surface Sanitizer?

• Targeted Protection: Designed specifically for indoor agriculture, our Capture & Kill technology tackles the unique challenges faced in flower rooms, dry rooms, veg rooms, and trim rooms.

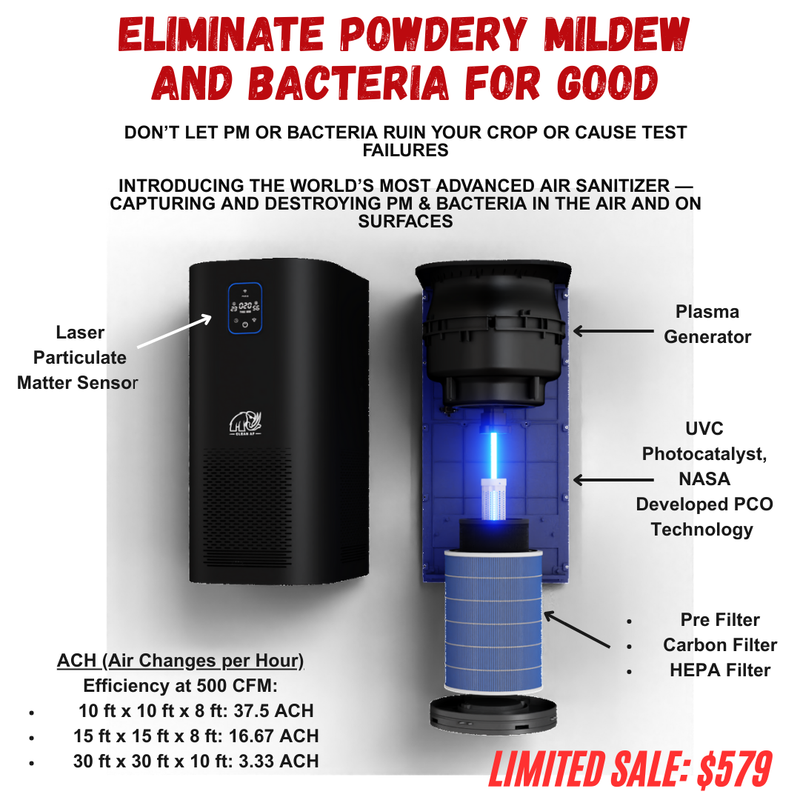

• Dual Defense:
  1. HEPA Filtration: Traps airborne particulate matter (PM), ensuring your crops breathe easy.

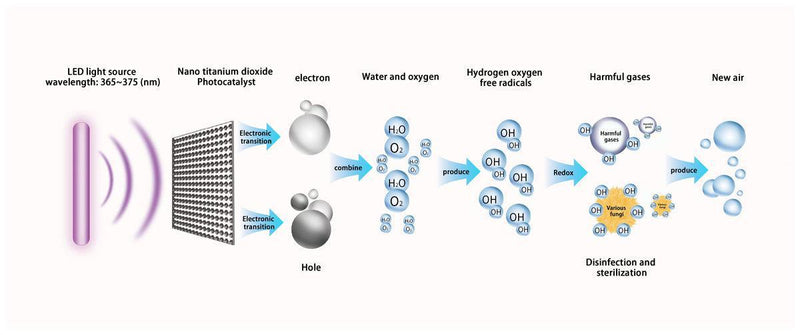

  2. Photocatalytic Oxidation (PCO): Activated by UV light, it neutralizes mold, bacteria, and other contaminants on surfaces and in the air.

Benefits for Indoor Agriculture:

1. Reduced PM: Say goodbye to dust and fine particles that can hinder plant growth.
2. Mold Prevention: Keep flower rooms and veg rooms mold-free, protecting your valuable crops.
3. Bacterial Defense: Shield against harmful bacteria that can compromise plant health.
4. Sanitized Surfaces: Trim rooms stay clean, preventing cross-contamination during processing.

ACH (Air Changes per Hour) Efficiency at 500 CFM:

• 10 ft x 10 ft x 8 ft: 37.5 ACH
• 15 ft x 15 ft x 8 ft: 16.67 ACH
• 20 ft x 20 ft x 10 ft: 7.5 ACH
• 30 ft x 30 ft x 10 ft: 3.33 ACH
• 40 ft x 40 ft x 12 ft: 1.56 ACH

Definition of ACH: Air Changes per Hour (ACH) refers to the number of times the air within a specific area is replaced in one hour, ensuring continuous circulation and purification for optimal indoor crop success.

Air Changes per Hour (ACH): This is crucial for determining how quickly the entire volume of air in a space can be cleaned. Different applications require different ACH rates:

Cannabis Grow Rooms: Typically, 6-12 ACH is recommended to control odors, mold, and pathogens due to the high humidity and concentration of volatile organic compounds (VOCs).

Home Use: 4-6 ACH is often sufficient for general air quality improvement.

Commercial Locations: Depending on the use, 4-8 ACH might be needed, especially if there are high occupancy or specific pollutants to manage.

Medical Facilities: Higher ACH rates, often 6-12, are recommended to ensure a sterile environment and reduce the spread of airborne pathogens.

Safe, Efficient, and Eco-Friendly

• Non-Toxic: Our technology is safe for plants, humans, and the environment.
• Energy-Efficient: Maximize results while minimizing energy consumption.
• Compliance-Ready: Meets industry standards and regulations confidently.
• ETL / UL Certification Pending

Specifications:

• Dimensions: 24" x 12" x 2'
• Weight: 20 lbs
• Power: 60W (UV lamp: 10W)
  • Recommend 1 per 500 sq feet.  Room air flow and cleanliness needs to considered.

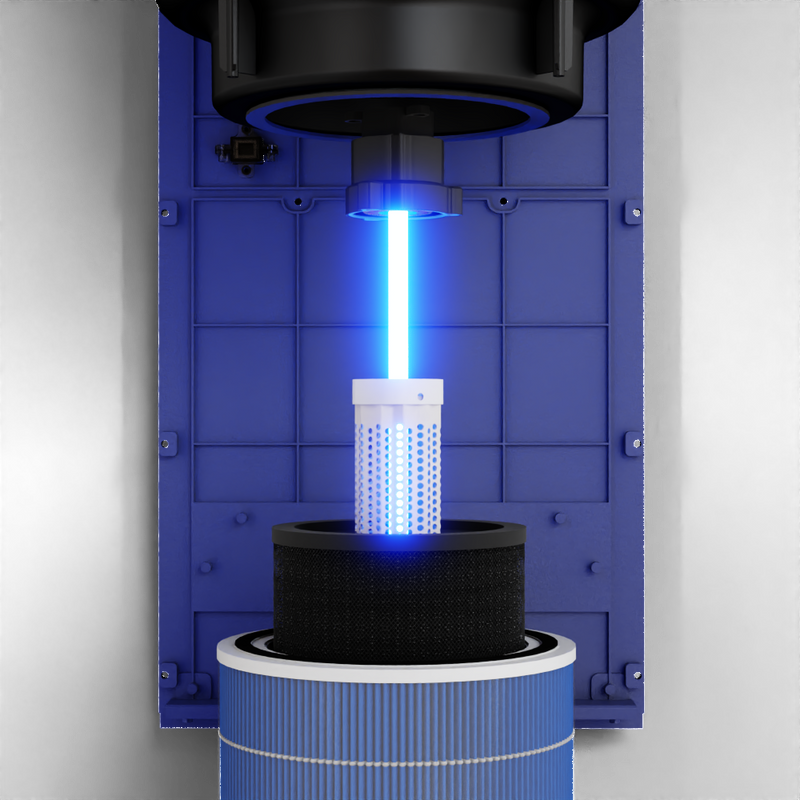

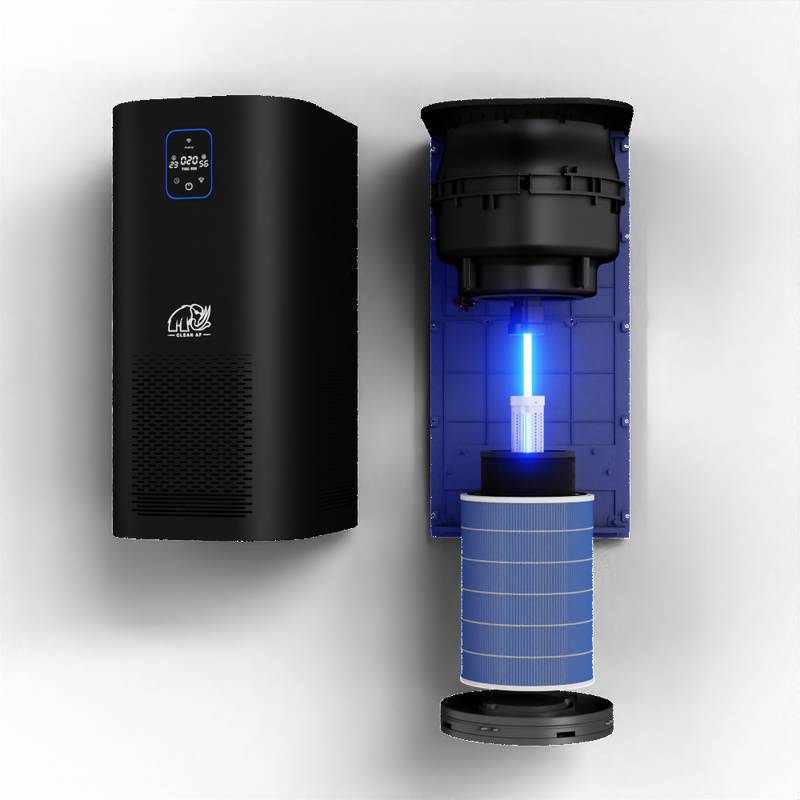

• Technology: PCO with 280nm UVC, HEPA intake filter, and carbon filter for odor reduction
• Sensors: Particle and TVOC laser sensors (display) for real-time air quality monitoring
• Remote:  Remote Control to change fan speeds (if mounted in hard-to-reach spot such as ceiling)
• Cord:  6 foot
• No Ozone Released

Maintenance Guide

• UV Lamp Life: 7,500 hours
• Carbon Filter: 2,500 hours
• Surface Cleaning: Recommended once every 12 months
• HEPA Filter: Up to 5,000 hours, depending on room cleanliness

Boost Your Indoor Crop Success: Get the Capture & Kill Advantage!
